Entity

The base class of all the geometry and mesh types. More...

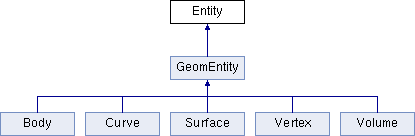

Inheritance diagram for Entity:

Public Member Functions
	Entity ()
	Entity (CubitEntity *entity_ptr)
	Entity (Entity const &copy_from)
	~Entity ()
std::array< double, 6 >	bounding_box ()
	Get the bounding box of the Entity. More...
std::array< double, 3 >	center_point ()
	Get the center point of the Entity. More...
void	destroy_cubit_entity ()
CubitEntity *	entity_ptr ()
int	id ()
	Get the id of the Entity. More...
int	is_transparent ()
	Get the tranparency state of the Entity. More...
void	is_transparent (int transparency_flag)
	Set the tranparency state of the Entity. More...
int	is_visible ()
	Get the visibility state of the Entity. More...
void	is_visible (bool visibility_flag)
	Set the visibility state of the Entity. More...
Entity &	operator= (const Entity &rhs)
void	set_transparent (int transparency_flag)
	Set the tranparency state of the Entity. More...
void	set_visible (bool visibility_flag)
	Set the visibility state of the Entity. More...

Protected Attributes
CubObserver *	cubitWatcher
CubitEntity *	mEntityPtr

Detailed Description

The base class of all the geometry and mesh types.

				import cubit





				br = cubit.brick(1,1,1)


				cubit.scale(br,2)


				cubit.cmd('delete body 1')


Constructor & Destructor Documentation

~Entity()

~Entity

(

)



Entity() [1/3]

Entity

(

)



Entity() [2/3]

Entity

(

CubitEntity *

entity_ptr

)



Entity() [3/3]

Entity

(

Entity const &

copy_from

)



Member Function Documentation

bounding_box()

std::array<double,6> bounding_box

(

)

Get the bounding box of the Entity.

					std::array<double,6> b_box = entity->bounding_box();


					b_box = entity.bounding_box()


Returns

The bounding box as a vector (or list) where the indices correspond to the values as follows:
0 - minimum x value
1 - minimum y value
2 - minimum z value
3 - maximum x value
4 - maximum y value
5 - maximum z value

center_point()

std::array<double,3> center_point

(

)

Get the center point of the Entity.

					std::array<double,3> center = entity->center_point();


					center = entity.center_point()


Returns

The center point as a vector (or list) where the indices correspond to the values as follows:
0 - x value
1 - y value
2 - z value

destroy_cubit_entity()

void destroy_cubit_entity

(

)



entity_ptr()

CubitEntity* entity_ptr

(

)



id()

int id

(

)

Get the id of the Entity.

					int id
					 = entity->id();


					id = entity.id()


Returns

The id of the Entity

is_transparent() [1/2]

int is_transparent

(

)

Get the tranparency state of the Entity.

					int trans = entity->is_transparent();


					trans = entity.is_transparent()


Returns

The current transparency state of the Entity (1 if transparent, 0 if not)

is_transparent() [2/2]

void is_transparent

(

int

transparency_flag

)

Set the tranparency state of the Entity.

					entity->is_transparent(1);


					entity.is_transparent(1)


Parameters

[in]

transparency_flag

The flag that sets whether the Entity is transparent (1) or not (0)

is_visible() [1/2]

int is_visible

(

)

Get the visibility state of the Entity.

					int vis = entity->is_visible();


					vis = entity.is_visible()


Returns

The current visiblity state of the Entity (1 if visible, 0 if not)

is_visible() [2/2]

void is_visible

(

bool

visibility_flag

)

Set the visibility state of the Entity.

					entity->is_visible(1);


					entity.is_visible(1)


Parameters

[in]

visibility_flag

The flag that sets whether the Entity is visible (1) or not (0)

operator=()

Entity& operator=

(

const Entity &

rhs

)



set_transparent()

void set_transparent

(

int

transparency_flag

)

Set the tranparency state of the Entity.

					entity->set_transparent(1);


					entity.set_transparent(1)


Parameters

[in]

transparency_flag

The flag that sets whether the Entity is transparent (1) or not (0)

set_visible()

void set_visible

(

bool

visibility_flag

)

Set the visibility state of the Entity.

					entity->set_visible(1);


					entity.set_visible(1)


Parameters

[in]

visibility_flag

The flag that sets whether the Entity is visible (1) or not (0)

Member Data Documentation

cubitWatcher

CubObserver* cubitWatcher

protected



mEntityPtr

CubitEntity* mEntityPtr

protected
