Printing stronger materials five times faster

3D printing has changed the world.

It’s allowed the aerospace, medical, automotive, manufacturing and many other industries to customize parts and prototypes in ways they never could before. It has drastically increased flexibility and cost effectiveness while reducing waste and production time. But many 3D-printed materials aren’t the strongest.

A team of chemists and materials scientists at Sandia hopes to change that.

They’ve developed a new printing process that prints stronger nonmetallic materials in record time, five times faster than traditional 3D printing.

“It opens up a whole new world of what you can build and what 3D materials can be used for,” materials scientist Samuel Leguizamon said.

He led the team that developed SWOMP, which stands for Selective Dual-Wavelength Olefin Metathesis 3D-Printing. As indicated by its name, it uses dual-wavelength light, unlike the traditional printing process.

How 3D printing works

Traditionally, vat 3D printing is accomplished by irradiating a vat of photosensitive liquid resin in a desired pattern.

As the resin is exposed to light from beneath the vat, the resin cures and hardens into a polymer layer. The cured polymer is then lifted, and a new pattern is projected beneath to cure subsequent layers.

One challenge: As the polymer cures, it adheres to the previous layer and to the bottom of the vat. After each layer, the cured polymer must be slowly peeled from the vat to prevent damage, significantly slowing down the 3D printing process.

Fellow creator Leah Appelhans said it’s kind of like baking cookies. “After you bake the cookies, you have to let them cool. If you were to try to peel the warm cookie off the cookie sheet, it’s squishy and it breaks apart. The same thing would happen with a 3D printer if you tried to quickly print each layer. Your work would get deformed.”

Samuel, Leah, former Sandian Jeff Foster and polymer scientist Alex Commisso came up with a way to cool the “cookies” quicker.

UV and blue light

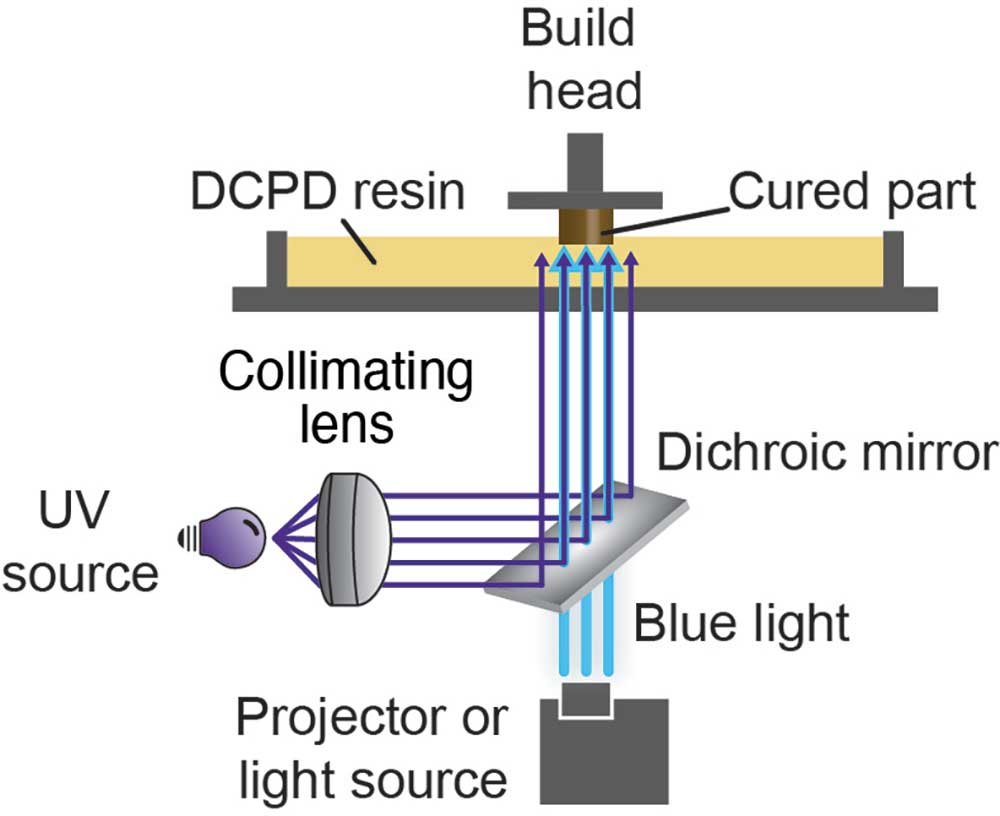

The key is combining two lights. In this case, ultraviolet and blue light.

The team took inspiration from a technique known as continuous liquid interface printing along with a printing approach using dual-wavelength light for acrylic-based polymerizations.

With it, they created SWOMP.

“You are still printing layer by layer, but you are using a second wavelength of light to prevent polymerization at the bottom of the vat. So it doesn’t adhere to the bottom,” Samuel said. “That means you can lift the cured polymer part more quickly and speed up the printing process significantly.”

Making 3D materials stronger

But this new process isn’t just about efficiency. It’s about making 3D-printed materials stronger and more versatile. Most vat-polymerization-printed materials are acrylic-based, not the strongest material.

“It’s really hard to use these materials in things like aircraft and space and aerospace and automotive. They are very harsh environments,” Sandia licensing executive Bob Sleeper said.

This team turned to the material dicyclopentadiene, which is commonly used in the production of paints, varnishes and flame retardants for plastics. They were able to develop a way to polymerize it more rapidly with light so that it can be used more efficiently in 3D printing.

“We changed building blocks of the materials from acrylic-based to olefin-based,” Samuel said. “Which lets us print materials that are a lot tougher.”

“That is the beauty of what they are doing,” Bob said. “You have very high-quality plastic parts that are made very precisely by using some light in a very novel way.”

Opening a new world of 3D printing

This team hopes their new printing process will open the world of 3D printing.

While the project was initially funded through a rapid three-month Exploratory Express program, it’s now funded by a Sandia technology maturation program.

“What we are trying to do is build the toolbox of materials available,” Leah said. “We want designers, researchers, engineers to be able to select the type of material they want to use.”

One day, they hope to see these 3D-printed parts in rockets, engines, batteries, maybe even in fusion applications. Samuel said they’re already talking with researchers at Lawrence Livermore National Laboratory to explore applications. “It turns out that monomers are already used in fusion components. You don’t usually think of a polymer used in fusion, but it’s really cool and exciting potential.”

The team also sees a world where 3D printing can be done more easily in remote areas. “We’re looking at locations where machinery and parts are not readily available; like in space, on the moon or in the Middle East at a U.S. military base,” Bob said. “You can bring with you some lightweight materials and make whatever you need on the spot.”

Samuel, who grew up in the small town of Wagener, South Carolina, is also thinking of applications that could help closer to home.

“I have horses. I grew up in a rural area, my dad was a farrier, so I’m thinking of ways to make horseshoes for racehorses. They have to be impact-resistant, but by changing the material properties, stress can be better spread out, and impact in the right space on the hoof. You could think of it as insoles for horses.”

The possibilities are endless.

“I think what attracted me to chemistry in the first place is the potential to make something that has never existed before,” Leah said. “The fun thing about 3D printing is that you apply that chemical knowledge to something that has a very concrete outcome. Something you can see and hold in your hands.”

Chemistry and collaboration at its finest

The team said this project is a perfect example of how Sandia brings together people from different backgrounds to collaborate.

Samuel Leguizamon brought photochemistry experience from his doctorate work; Leah Appelhans brought expertise in developing methods for additive manufacturing of thermosets; and Jeff Foster had a background in this particular type of polymerization.

“It created something that is far greater than any individual person working on their own would have been,” Leah said.

The project began in early 2021 when Leah and Sam, both immersed in a tech maturation project funded by NNSA, confronted the limitations of conventional resin printing. Their collaboration sparked a pivotal question: Could there be a faster way to bring their ideas to life? Drawing from his experiences in Timothy Scott’s lab, Sam realized the key was to bring a second wavelength of light into the process.

As fall arrived in 2021, the project gained momentum with the addition of Foster. Foster’s expertise in synthesis and polymer chemistry proved invaluable as they set out to validate the feasibility of their concept. Together, they achieved accelerated printing rates and enhanced thermomechanical performance using specialized resins.

By fall 2022, the team expanded to include Adam Cook and Devin Roach. Their expertise in system evaluation and characterization played a crucial role in building a robust, modular dual-wavelength printer. Under Sandia’s technology maturation program, they transformed ideas into tangible results.

In 2023, Alex Commisso joined the team, bringing a focus on 3D printing monomer systems. Alex’s expertise allowed the team to expand their available library of materials and dual-wavelength inhibitory systems. Together, they stand at the forefront of innovation, poised to shape the future of additive manufacturing.
