The Reduce Bolt command is intended to prepare a volume identified as a bolt for analysis by simplifying its geometry, fitting to overlapping geometry, creating blocks and groups, etc. For the fit_volume option of the reduce command, the main assumption is that overlap exists between the bolt shaft and surrounding volume. This operation will remove any overlap and fit the shaft geometry tightly to its surrounding volume.

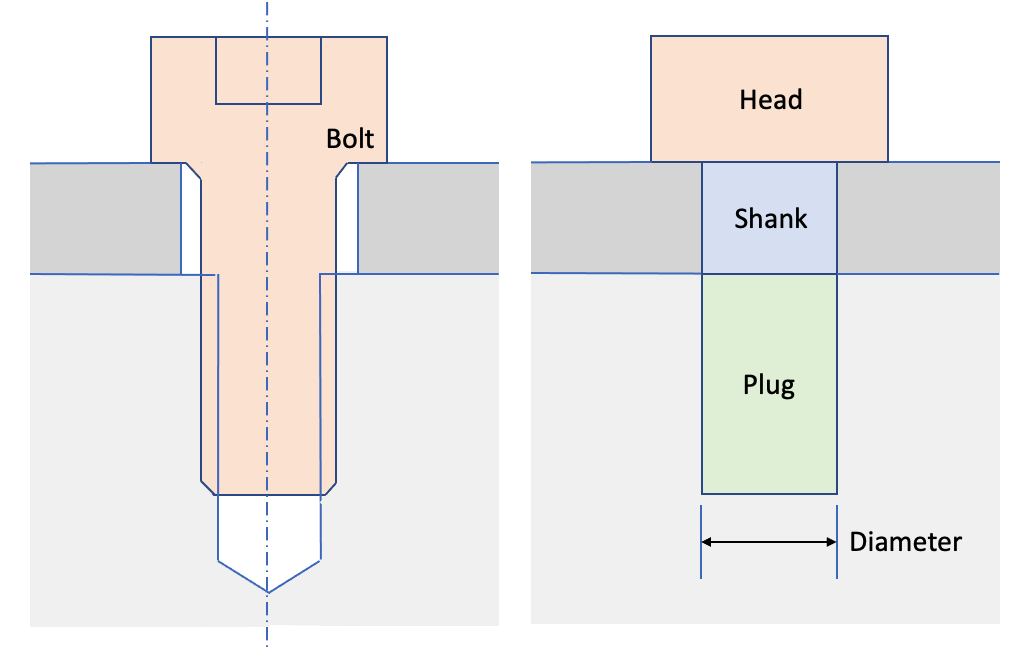

Figure 1. Example before and after of the Reduce Bolt Fit_Volume command
Syntax:
Reduce {volume <ids>} bolt fit_volume
[webcut [{Head|Shank|BOTH}]] [imprint] [merge] [qtri]
[increment_block_ids] [summary] [diameter <value>]
[group_id {<value>|Default}][group_name {<string>|Default}]
[head_block_id {<value>|Default}][head_block_name {<string>|Default}]
[shank_block_id {<value>|Default}][shank_block_name {<string>|Default}]
[plug_block_id {<value>|Default}][plug_block_name {<string>|Default}]
[bolt_block_id {<value>|Default}][bolt_block_name {<string>|Default}]
[preview]
Discussion:
In addition to removing overlap and "fitting" the shaft to the surrounding volume, the bolt can be automatically webcut into three parts: head, shank and plug as shown in figure 1. The resulting webcut volumes can in turn be assigned to blocks or groups and the diameter of the shank can be altered. The plug can also be merged or contiguously meshed with the fastened geometry.
When the bolt volume is partially overlapping the volume to which it is fastened, as shown in figure 2, the fit_volume option will remove the bolt hole from the volume and perform a boolean subtract operation to ensure that the bolt exactly fits the volume the bolt is fastened to. Figure 3 shows the result of the fit_volume operation. Note that the hole beneath the bolt has also been filled in.
|

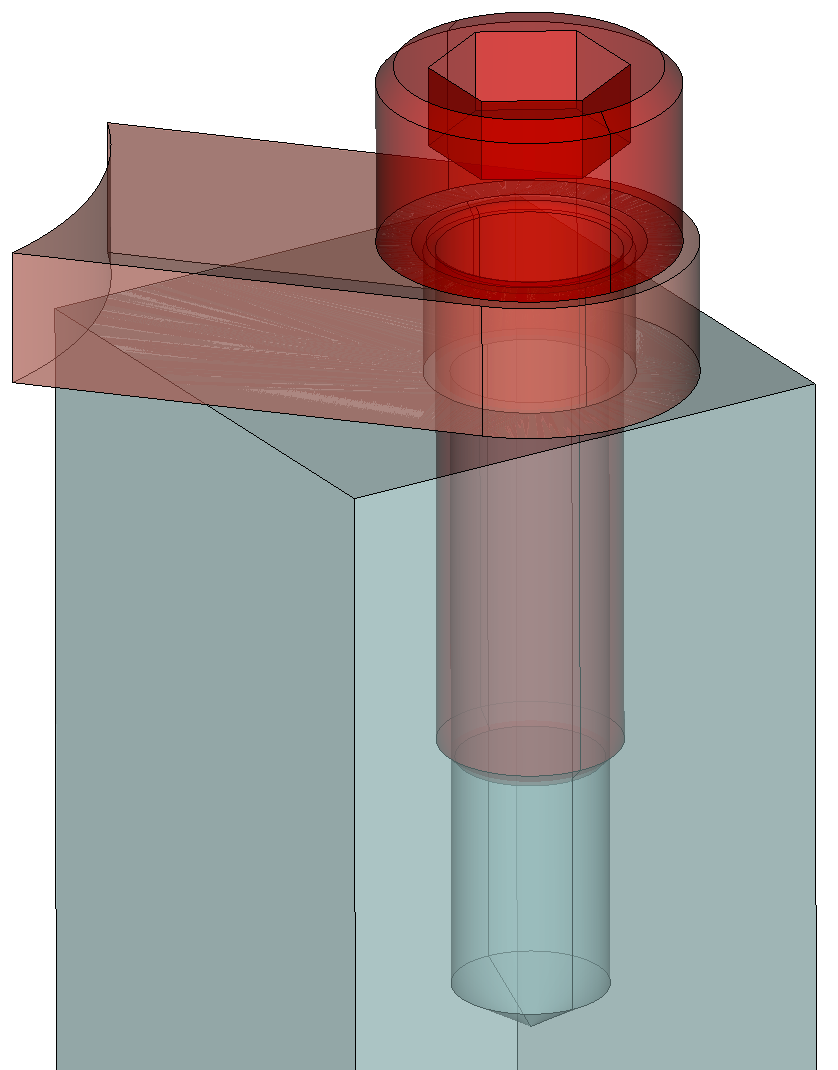

Figure 2. Bolt geometry prior to reduce operation showing nearby volumes. |

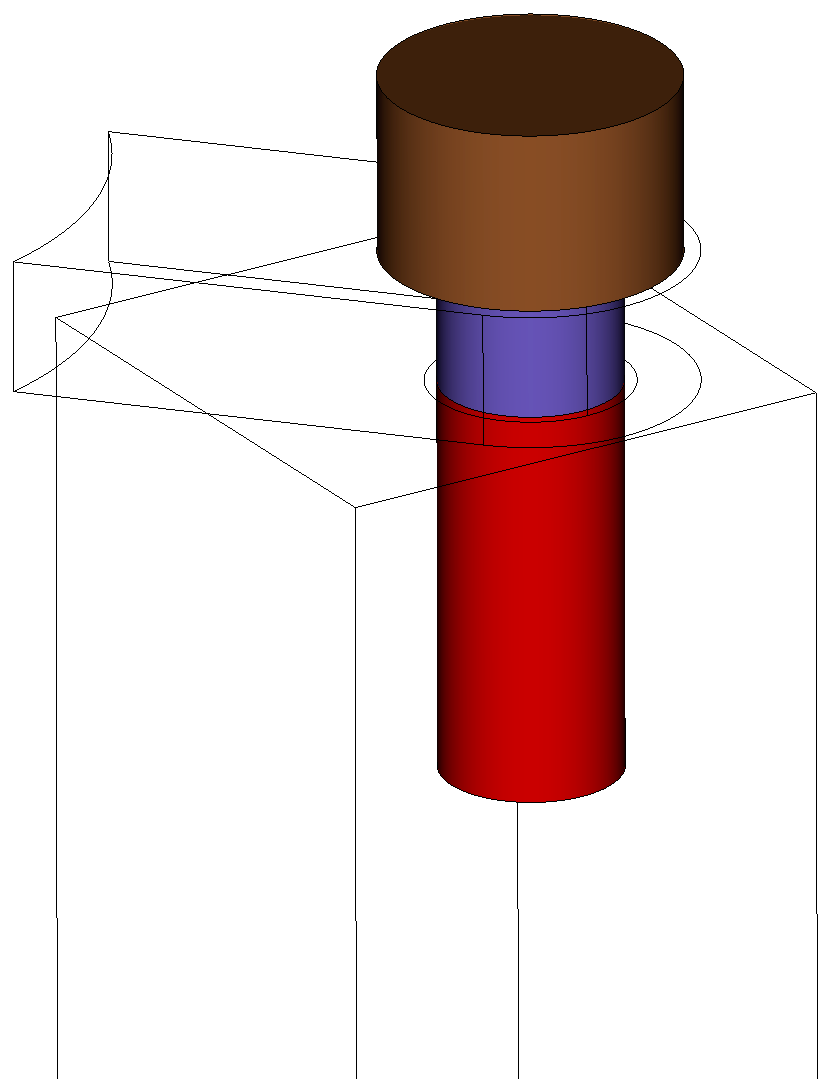

Figure 3. Bolt after reduce operation using fit_volume, webcut and block assignment options. |
volume ids: Specify the ids of the volumes to be reduced. The Geometry Power Tool classification diagnosic can be used for identifying volumes as "bolts".
webcut [{Head|Shank|BOTH}]: When using fit_volume option with webcut, the bolt can be cut into up to 3 different volumes as shown in figure 1. Using the optional Head or Shank options a single webcut can be executed separating just the head from the shank or just the shank from the plug respectively. If no arguments are used to the webcut option, or the both option is used, both webcuts will be performed resulting in three volumes. The resulting volumes will be merged together. The location of the webcut on the shank will be where the bolt exits the volume to which it is fastened.
imprint: If the webcut option is not used, the imprint option can be used to imprint the volume to which the bolt is fastened onto the bolt. This would normally be where the shank was separated from the plug if the webcut option was used.
merge: When the merge option is used the plug will be automatically marged with the volume to which the bolt is fastened.
qtri: Sometimes it may be useful to pre-mesh the interface defined by the cylindrical surface of the plug. This can be used if contact is to be simulated. The qtri option will apply a qtri mesh at the surface of the plug volume. The mesh size will be defined by the size set on the bolt volume.
diameter <value>: Use the diameter option to alter the diameter of the bolt shank. If no value is specified for diameter, the existing diameter of the bolt will be used.
summary: The summary option will report areas and volume of the bolt before and after performing the reduce operation.
group_id {<value>|Default}, group_name {<string>|Default}: When the webcut option is used, since up to three volumes will result, it may be useful to assign the resulting volumes to a group. The group may be defined by either a group_name or group_id. If the group does not yet exist, a new one will be created. The Default option will automatically select an id or name.
When the webcut option is used, the resulting volumes may be assigned to a block. The following options may be used to assign to blocks based on an ID or a block name:
If webcut is not used, the resulting reduced bolt volume may still be assigned to a block id using either the bolt_block_id {<value>|Default} or bolt_block_name {<string>|Default} options.
increment_block_ids: When assigning new webcut volumes to blocks, the block ID can be automatically generated by incrementing from a specified block_id. For example, if head_block_id is defined as 100, and the increment_block_ids option is used, each new head volume generated will be assigned to a new unique block id starting with 100, followed by 101, 102, 103, etc.
preview: optional argument to display a preview of the reduce bolt fit_volume operation without execution of the reduction. T This option will display the reduced bolt geometry in blue with the surrounding volumes displayed in wireframe.
