Webcuts created from sweeping surfaces (not recommended) |
Webcuts using loft command (recommended) |
Webcut | Command |
![]() |
CUBIT> webcut body 2 loop curve 6 |
![]() |
CUBIT> webcut body 2 sheet extended from surface 1 |
![]() |
CUBIT> create surface from surface 10 |
![]() |
CUBIT> webcut body 3 tool body 7 |
![]() |
CUBIT> webcut body 2 3 plane yplane |

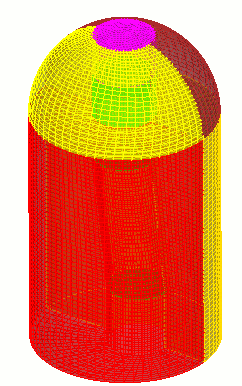

The final webcut model consists of a central shaft which can be swept top to bottom, and a surrounding casing which can be swept around. This is possible because the shared surface is a linking surface for both types of sweeps. The final mesh is created with a size of 0.15
