Cubit 15.7 User Documentation
Webcut | Command |
![]() |
CUBIT> webcut volume 1 with sheet extended from surface 27 |
![]() |
CUBIT> webcut volume 1 with plane surface 30 |
![]() |
CUBIT> webcut vol all sweep surf 26 vector -1 0 0 through_all Now Volume 3 (red) has only 1 target surface. CUBIT> imprint all |

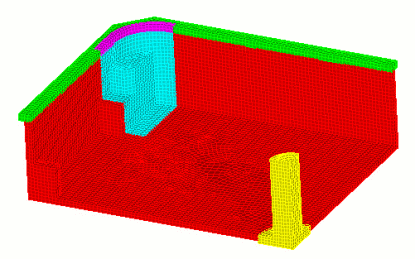

The final mesh is created at a size of 0.05 for all volumes.
