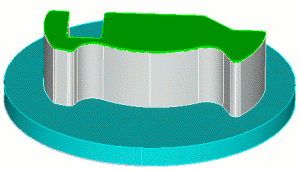

Figure 1. Exterior view

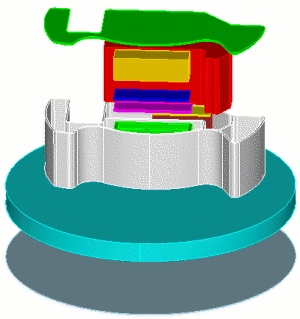

Figure 2. Interior view
We examine several of the volumes below.Source Surface(s) | Target Surface(s) | Sweep type |
![]() |
![]() |
Many-to-one Sweepable Imprinting and merging adjacent volumes creates additional partitions on the source surface, but the target surface does not contain imprints. |
![]() |
![]() |
Many-to-one Sweepable Multiple source surfaces due to interior void |
![]() |
![]() |
One-to-One Sweepable Source and target surfaces are single surfaces, and there are no imprints on the linking surfaces |
![]() |
![]() |
Many-to-one Sweepable Interior void causes multiple source surfaces. |
![]() |
![]() |
Multisweep Imprinting causes multiple source surfaces and interior void causes multiple target surfaces. This volume requires decomposition |
Webcut | Command |
![]() |
CUBIT> webcut volume 5 with sheet extended from surface 70 CUBIT> imprint all CUBIT> merge all CUBIT> volume all size 0.15 CUBIT> volume all scheme auto |

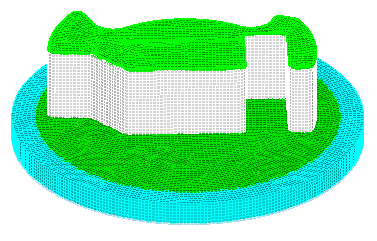

The final mesh is created at a size of 0.15 for all volumes.
